Flexible PCB, rigid-flex, and “folding electronics” show up in buying lists as if they were finishes. They are constructions. Choosing the wrong one wastes the stackup budget or, worse, cracks copper the first time the enclosure closes.

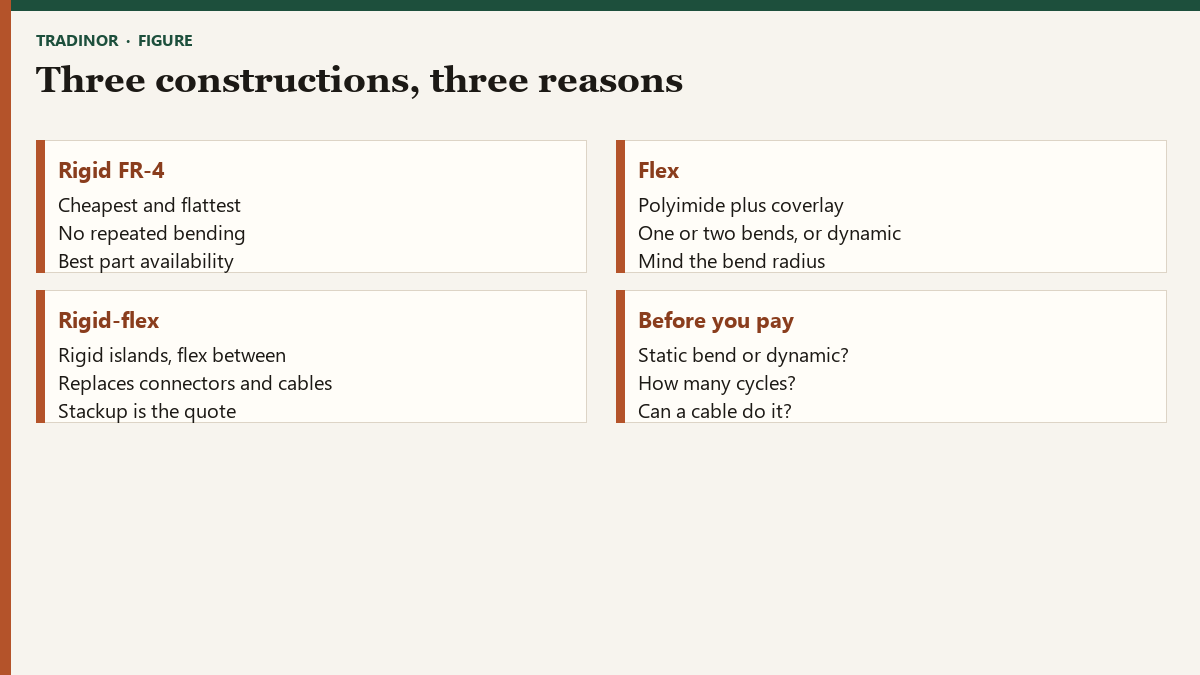

Rigid is the default for a reason
FR-4 is flat, cheap, and what every assembly house is tooled to build. If the board never bends, do not pay for polyimide. Most industrial controls, power boards, and sensor boards should stay rigid and put movement in a connector or a wire.
Flex is a material change, not a thinner rigid board
A flex circuit uses polyimide film, rolled or electrodeposited copper, and usually coverlay instead of brittle solder mask in the bend zone. Stiffeners are added under connectors so the mating force does not tear the film. Say whether the bend is static (folded once during assembly) or dynamic (a hinge or a print head). Dynamic flex needs a larger radius, smoother copper, and a factory that will talk about cycle count instead of nodding at the word “flexible.”
Rigid-flex replaces a connector you are tired of
Rigid-flex puts component areas on rigid islands and lets a thin section bend between them. It removes a board-to-board connector and the cable that used to fail, at the cost of a harder stackup and a smaller list of capable shops. The fabrication drawing has to show where bending is allowed and where parts, vias, and coverlay openings must not sit. Vias in the bend zone are a common way to scrap an otherwise good design.
| Need | Usual construction |
|---|---|
| No movement, lowest cost | Rigid |
| One fold into a tight case | Flex with a stiffener, or rigid-flex |
| Daily motion | Dynamic flex, radius confirmed in writing |
| Serviceable module | Rigid boards and a cable |
Waterproofing and “outdoor” are enclosure problems more than flex problems. A flex tail still needs strain relief and a sealed connector if the product is washed or left in the weather. See IP ratings and enclosures before adding those words to the board order.
Questions buyers actually ask
Is rigid-flex just a flex board screwed to a rigid board?
No. A true rigid-flex stackup is laminated as one construction, with the flex layers continuing into the rigid sections. Two boards joined by a connector or a hand-soldered flex tail are a different product and should be quoted that way.
What bend radius should a buyer ask about?
A common design rule is several times the flex thickness for a one-time bend, and a larger radius for a bend that moves every day. The fabricator should confirm the radius against copper weight and layer count. Do not invent a radius in the purchase order and hope.
When is a cable the better choice?
When the two ends are far apart, the volume is low, or the product must be serviced by unplugging a harness. Flex and rigid-flex win when space, weight, or a repeated connector failure is the actual problem.
